Explore our new headquarters and see what’s new at our company.

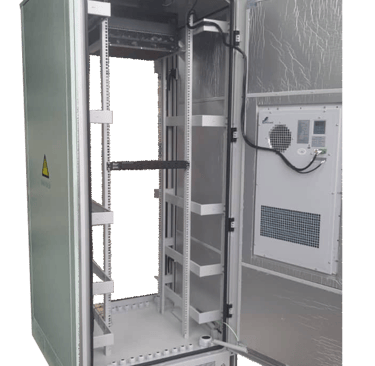

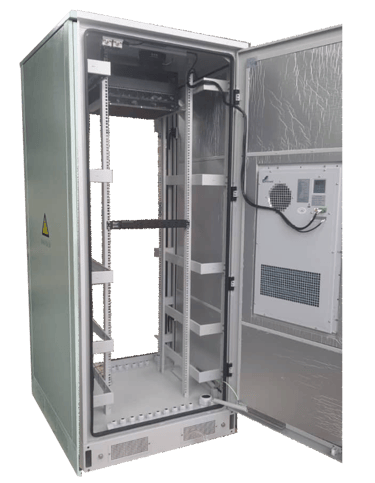

Enclosed cabinet with Cold Aisle and Hot Aisle containment
-48VDC rectifier
Lithium batteries with backup of up to 4 hours
Monitorable PDU/PDM specially designed for telecom equipment
6.0 kW monitorable cooling capacity
Access control system
And much more...
Key Features
Components That Make It an All-in-One Solution
IP65 cabinet system
Enclosed outdoor cabinet
Ambient lighting
Rack MDC lighting system
Vertical and horizontal cable management
Power system
48 VDC power frame
48 VDC power module
Lithium battery packs
Intelligent PDU with input monitoring
PDM (Power Distribution Module)
ATS 63A/3P (Automatic Transfer Switch)
3 kW 48 VDC power inverter
Cooling system
Rack-mounted DX unit, 3.5 kW
Air-cooled condenser, 6 kW (3 kW, 48 VDC)
DCIM (Data Center Infrastructure Management)
Monitoring host: all-in-one type
SNMP module
Sensor – Temperature and humidity
Sensor – Smoke detection
Sensor – Leak detection (positioning type)
Sensor – Door status
16-port network switch
Security system
Outdoor electric lock with PIN
RFID card access
Descarga la Hoja de Datos
